Active Ion Gauge

Name: Active Ion Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

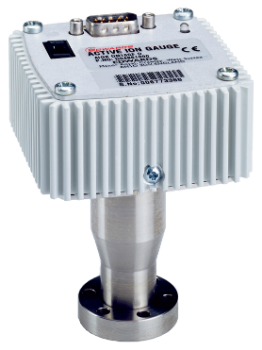

The Active Ion Gauge (AIGX) is a compact active ion gauge with dual yttria coated iridium filaments, a wide measuring range from 6.6x10⁻² to 6.6x10⁻¹⁰ mbar and a 1 Volt/decade linear output.

The AIGX incorporates all benefits of the industry standard active gauging concept, with integral electronics and replaceable tube. The gauge has a degas facility and includes features to protect and extend the life of the filaments.

The AIGX benefits from extremely low emissions of charged particles, which makes it an excellent choice for processes where background noise is undesirable.

Full 8-decade measurement capability, to 6.6x10⁻¹ mbar

Two versions available

each with three vacuum coupling variants: ‘D’ versions have a 9-pin ‘D’ connector and standard interface;

Up to a thirty-fold reduction in charged particle process contamination compared to leading competitors.

Automatic filament protection against switching on at atmosphere and running or degassing at high pressure.

View full details

TECHNICAL DATA		AIGX-S
Pressure range	mbar	6.6 x 10^-2 to 6.6 x 10^-10
Accuracy	mbar	Typically +/- 15%
Max overpressure	bar	10 bar absolute (145 psi)
Temperature range Operating	°C	0 to +40
Temperature range Storage	°C	-30 to +70

1 6

Product Features

Dimensions

Performance Curve
