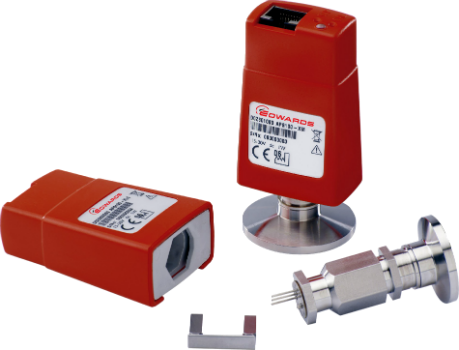

Active Pirani Vacuum Gauge

Name: Active Pirani Vacuum Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

APG100 series Active Pirani vacuum gauges are available in 2 models. The APG100-XM is the standard model and measures to 10⁻³ mbar, the APG100-XLC is a corrosion resistant version with measurement to 10⁻⁴ mbar.

Both gauges feature compact size for easy installation, a linear output and a replaceable sensor tube. These gauges are compatible with all Edwards TIC instrument controllers and other Active gauge controllers and displays.

Sensor tube can be baked to 150°C

Adjustable set-point for simple process control and interlocking

Remote calibration possible

NW16,NW25 and DN16CF flange options for easy connection to vacuum systems

Linear output

1 V per decade for easy interface with vacuum control systems.

View full details

Technical Data		APG100-XM	APG100-XLC
Pressure range	mbar	10³ to 10⁻³	10³ to 10⁻⁴
Accuracy	mbar	<100	<10 typically ±15%
Max overpressure	bar	10 bar absolute (145 psi)	10 bar absolute (145 psi)
Temperature range Operating	°C	+5 to +60	+5 to +60
Temperature range Compensated	°C	-30 to +70	-30 to +70

1 6

Product Features

Dimensions

Performance Curve
