Active Strain Gauge

Name: Active Strain Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

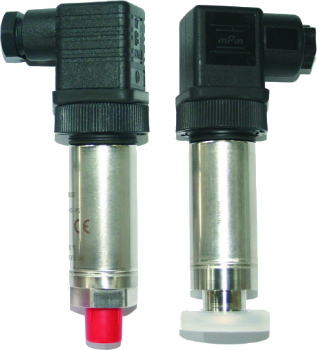

The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm gauge which provides accurate, gas independent measurement from 2000 mbar to 1 mbar or 1000 mbar to 1 mbar. It can be used as a stand-alone transducer allowing OEMs and system builders to develop low cost, flexible solutions to their vacuum instrumentation needs. Alternatively, it can be connected to the TIC Instrument Controller where it can be combined with many other sensor types to provide a complete vacuum instrument solution.

Note: ASG adaptor cable supplied separately. This cable must be used with TIC, AGC, ADC & ADD.

Drive electronics combined in the gauge head

which simplifies system design and saves valuable rack space.

Wide range regulated internal power supply

which runs from standard d.c. power supplies of +12 to +32 V and is tolerant to voltage fluctuations

Standard analogue output of 0 to 10 V d.c.

which is easy to interface with a computer or PLC

High accuracy and stability

Accuracy of ±0.2 full scale and stability 0.1% full scale

Corrosion resistant

rugged design where the material exposed to vacuum is stainless steel 316 & Hastelloy C276.

View full details

TECHNICAL DATA		ASG2 - 1000	ASG2 - 2000
Pressure range	mbar	1000 to 1	2000 to 1
Accuracy	mbar	+/- 0.2% scale	+/- 0.2% scale
Max power	W	0.1	0.1
Temperature range Operating	°C	-40 to +80	-40 to +80
Temperature range Compensated	°C	-10 to +50	-10 to +50

1 6

Product Features

Dimensions

Performance Curve
