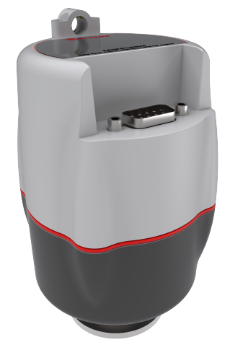

Active Wide Range Gauge

Name: Active Wide Range Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10⁻⁹ mbar, with a linear output. It’s a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a patented striker, push-button calibration and set point controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the vacuum system controls.

Log pressure scale

Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output

D-type version

including cable strain relief and enhanced ingress protection – IP44

Low magnetic field version (SL)

available for sensitive applications e.g. mass spectrometry and electron microscopy

Easily programmed set-point

covering entire measuring range

Magnetron uses an advanced patented technique

for highly reliable striking at high vacuum or in relatively contaminated conditions

View full details

TECHNICAL DATA		WRG
Pressure range	mbar	10^-3 to 10^-9
Accuracy	mbar	Typically +/- 15% at <100 mbar +/- 30% at <10^-3 mbar
Max overpressure	bar	10 bar absolute (145 psi)
Temperature range Operating	°C	+5 to +60
Temperature range Storage	°C	0 to +70
