CG16K Dial Gauge

Name: CG16K Dial Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

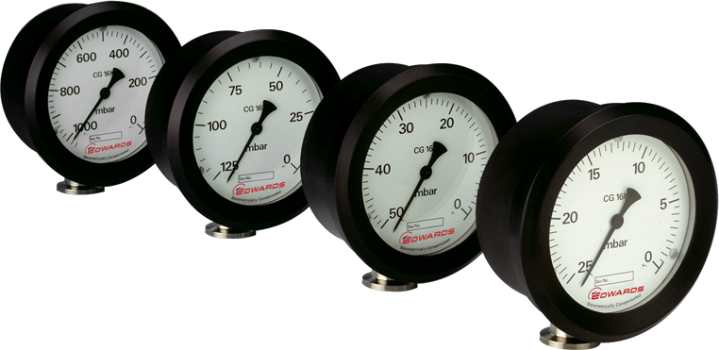

Edwards CG16K capsule dial gauges are barometrically compensated with NW flange fittings. Designed to cover the range of 0-1040 mbar, these robust gauges provide accurate, repeatable performance even at low pressures making them equally suited for non-corrosive process plant or for laboratory applications. Fitting is simple: the gauges can be mounted direct or panel mounted using the kit supplied.

Reading independent of gas type

Accurate to ±2% of full scale

Barometrically independent

Pipeline or panel mounting

Easy to read linear scale

View full details

TECHNICAL DATA		CG16K 1040mbar	CG16K 125mbar	CG16K 50mbar	CG16K 25mbar
Pressure range	mbar	0-1040	0-125	0-50	0-25
Accuracy		±2% of full scale deflection	±2% of full scale deflection	±2% of full scale deflection	±2% of full scale deflection
Maximum applied pressure		2 bar absolute, 1 bar gauge	2 bar absolute, 1 bar gauge	2 bar absolute, 1 bar gauge	1 bar absolute, 0 bar gauge

1 6
