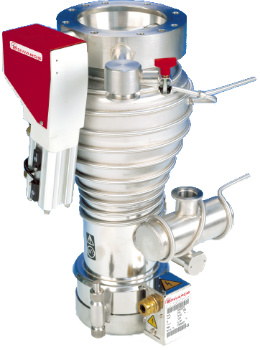

Diffstak - Vapour Diffusion

Name: Diffstak - Vapour Diffusion
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The Edwards Diffstak vapour diffusion pumps are compact, water-cooled pumps with integral cooled baffles which provide exceptionally clean pumping.

Compact

Compact water-cooled diffusion pumps

Wide pumping ranges

From 135 (N2) to 3200 l/s (H2)

Valved or Unvalved

Integral high-vacuum valve fitted as standard. Manual or pneumatic valve options.

Exceptionally clean

Integral cooled baffles offer exceptionally clean pumping with very low backstreaming

Proven

With thousands of pumps installed

View full details

DIFFSTAK SIZES		63/150 M y P	63/150 C	100/300 M y P	100/300 C	160/700 M y P	160/700 C	250/2000 M y P	250/2000 C
Pumping speed (Nitrogen)	l/s	135	150	280	150	700	760	2000	2130
Pumping speed (Hydrogen)	l/s	200	225	500	225	1300	1410	3000	3200
Minimum backing pump displacement	m³/h	5	5	5	5	12	12	40	40
Oil charge capacity	ml	60	60	125	60	250	250	500	500
Heater power	W	450	450	650	450	1350	1350	2250	2250

Documentation

Diffstak Product Information

The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation.

This pump has a manually operated high vacuum isolation valve and is supplied with: NW10 elbow, NW10 centering-ring, NW10 clamp, water pipe couplings and ferrules, inlet ISO63 Co-Seal.

Request a Quote

1 6

Product Features

Dimensions

Performance Curve
