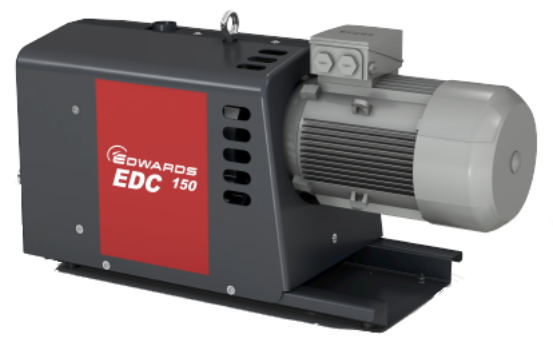

EDC - Dry Claw

Name: EDC - Dry Claw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The new range of our EDC dry claw pumps features an innovative design which creates a new benchmark in the claw pump market. The simplicity, robustness, efficiency and contaminant handling capability of these pumps make them the smart choice for your application.

Built to last

Innovative construction materials and coatings for a lifetime of reliable operation even in harsh conditions.

Easy maintenance

Simplest of designs suited for quick access to the pumping chamber for easy cleaning in the event of product carry-over

Improved productivity

Best in class ultimate vacuum level, market leading pumping speed and lower continuous vacuum level

Low cost of ownership

Best in class power consumption

Quiet operation

Low noise levels

View full details

EDC Sizes		EDC 065	EDC 150	EDC 300
Nominal Displacement	m³/h	65	150	300
Ultimate vacuum	mbar	50	50	140
Noise Level	dB(A)	66	75	77
Permissible ambient temperature	°C	0 - 40	0 - 40	0 - 40
Nominal motor rating	kW	1.8	3.7	6.2

Documentation

EDC Brochure

Built to the exacting standards and quality demanded by our customers, the new dry claw pump provides you with a trouble-free and cost-effective solution to meet your needs.

With pumps up to 360 m³/h and the ability to be driven by a proven variable speed drive (VSD) technology the EDC claw pumps afford you complete flexibility, efficiency and control over your process. These machines designed with robustness, durability and superior materials of construction and technological advances to give you a trouble-free solution to your specific application.

Request a Quote

1 6

Product Features

CLEVERLY DESIGNED ELEMENT
Easily accessible pumping chamber for cleaning without accessing the gearbox and disturbing the timing. Modular design allows flexibility and efficiency in terms of maintenance and life cycle costs.
BUILT-IN CORROSION RESISTANCE
Corrosion resistant claws. Coated pumping chamber. Suitable for many harsh applications.
UPGRADED BEARINGS AND SEALS
Based on proven compressor and screw vacuum pump design for long trouble free life even in the harshest applications.

COMPACT WITH A SMALL FOOTPRINT
Ideally suited for replacement market, compressor house installations and OEM machinery
VARIABLE SPEED DRIVE COMPATIBLE
Significant energy savings: up to 50% compared to fixed speed machines. Improved response to varying demand. Opportunity to replace multiple machines and centralize pumps in one location to optimize system performance.
SET-POINT CONTROL OPTION
Allows you to optimize the energy you use to maintain your process duty point. The lowest possible flow will be delivered to match your required duty point or speed – nothing is wasted.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
