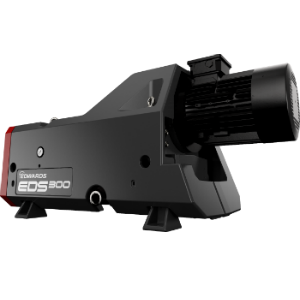

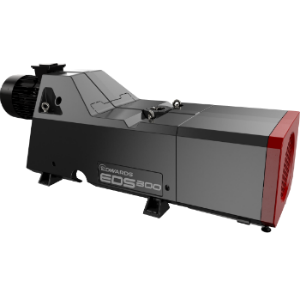

EDS - Dry Screw

Name: EDS - Dry Screw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Edwards’ new range of EDS dry screw pumps features an innovative design which creates a new benchmark in the screw pump market. An intricate piece of engineering, built to the exacting standards and quality demanded by our customers, the new dry screw pump provides you with a trouble-free and cost-effective solution to meet your needs.

Simple

Plug and play System

Faster

Quick pump down times: higher roughing speeds get the job done quicker

Flexible

Safe and flexible for chemical processing industry. Configured for hazardous area installations.

Process Capable

High tolerance for particulates. Air blast cooling variant option available

Robust

Robust water cooling system

View full details

EDS Sizes		Water Cooled 200	Water Cooled 300	Air Cooled 200	Air Cooled 300	Chemical 200	Chemical 300
Peak Pumping speed	m³/h	210	>280	210	>280	210	>280
Ultimate pressure	mbar	<0.05	<0.01	<0.05	<0.01	<0.05	<0.01
Full load power at ultimate pressure	kW	4.1	4.5	4.1	4.5	4.1	4.5
Noise Level	dB(A)	<76	<76	<76	<76	<76	<76
Operating temperature	°C	5 - 40	5 - 40	5 - 40	5 - 40	-20 - 40	-20 - 40

Documentation

EDS Brochure

Water-cooled, the EDS range is robust and efficient. Its second-to-none contaminant handling capability in the harshest industrial and chemical conditions make these pumps the smart choice for your industry. Cool and simple, easy to service, high speed, the EDS vacuum pumps offers all the extra performance you need for the harshest and toughest industrial and chemical applications.

Request a Quote

1 6

Product Features

SIMPLE
Industry leading state of the art screw
vacuum technology simply packaged
Trouble free peace of mind: ease of installation, systemisation, support and service
Pumping: designed to be simply reliable
FASTER
Extra performance to meet modern day technologies
Quick pump down times: higher roughing speeds get the job done
quicker
High pumping speeds: gives more throughput where it matters
PROCESS CAPABLE
Mechanism proven in the most demanding applications
Extended MTBS: purge protection options to prolong life on
harsh processes
Increased Process Uptime: survives process mishaps and
contaminant ingestion

FLEXIBLE
Designed for a changing global market
Safe and compliant: easily configured for hazardous area installations
Engineer To Order: basic modular building blocks for special
pumping systems
ROBUST
A truly industrial machine for the most challenging installations
Installation options: highly tolerant water cooled and air blast cooled standard products
Protection: High IP ratings and easily cleanable protective canopies

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
