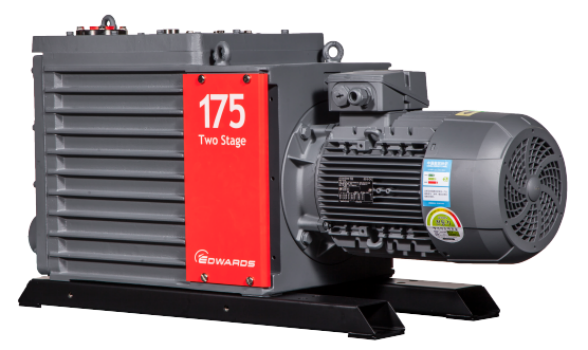

EM - Medium and Large Rotary Vane

Name: EM - Medium and Large Rotary Vane
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Compact and quiet, they feature advanced lubrication circuits, high reliability, and accessories to suit your specific application needs.

Exceptional reliability

Proven in a range of industrial and laboratory applications

0.001 mbar

Single and two stage design options

Gas-Ballast valve

Large vapour handling capacity

Quiet operation

Down to 43 dB(A) on smaller sizes

Atex

Internal classification of Ex II 3 G c IIB T4

View full details

EM Oil Sealed Rotary Vane Sizes		E2M40	E2M80	E2M175	E2M275
Peak pumping speed	m³/h	37	74	160	255
Ultimate vacuum	mbar	0.001	0.001	0.007	0.005
Ultimate vacuum with gas ballast	mbar	0.007	0.007	0.001	0.001
Max water vapour pumping rate	Kg/h	0.2	0.3	0.3	2.3
Noise level	dBA	65	70	75	75

Documentation

EM single and two stage oil sealed rotary vane pumps are renowned for achieving high ultimate vacuum and rapid pumping speeds, with quiet operation and compact size. These pumps have been proven to provide long term reliable performance over many years in a range of scientific and laboratory applications, and are the ideal partner for your turbomolecular pump.

Request a Quote

1 6

Product Features

HIGH QUALITY OILS
with additives to prolong life whilst not impacting vapour pressure
LARGE WATER VAPOUR HANDLING CAPACITY
gas ballast valve
NO CUSTOMER WIRING
integral IEC connector

VISUAL OIL INSPECTION
of oil level and condition; o-ring sealed sight glass
EASY CONTROL
monitor on/off switch
LOW SURFACE TEMPERATURE
forced air cooling

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
