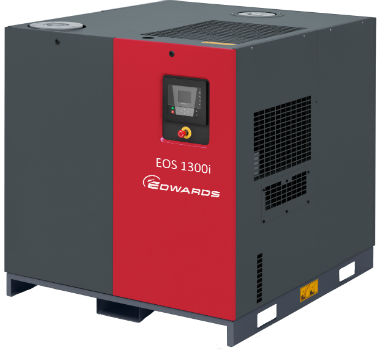

EOSi - Rotary Screw

Name: EOSi - Rotary Screw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Edwards EOSi range is a new generation range of quiet, oil sealed rotary screw vacuum pumps. With Variable Speed Drive (VSD) technology and intelligent control, the EOSi range delivers impressive on-demand performance capability and optimises energy consumption.

Increased efficiency

Class leading ultimate vacuum level and extended operating pressure range

Improved productivity

Class-leading pumping speed and fast chamber pumpdown performance capability

Intelligent control

Closed loop pressure control and active power management

Low cost of ownership

Automatic performance matched to vacuum demand

Quiet operation

Noise levels approximately half that of comparable technologies

View full details

EOSi Sizes		EOS 350i	EOS 585i	EOS 730i	EOS 900i	EOS 1300i	EOS 1600i	EOS 1900i
Peak pumping speed	m³/h	400	560	730	900	1250	1590	1810
Ultimate vacuum	mbar	0.35	0.35	0.35	0.35	0.35	0.35	0.35
Shaft power	kW	5.5	7.5	11	15	22	30	37
Permissible ambient temperature	°C	0 - 46	0 - 46	0 - 46	0 - 46	0 - 46	0 - 46	0 - 46
Noise level range	dB(A)	51-65	51-65	51-73	51-76	65-75	65-79	65-80

Documentation

EOSi Rotary Screw Vacuum Brochure

The highly efficient patented oil separator design extends service intervals and reduces maintenance costs. Temperature management control enables unrivalled water handling capability to provide you with the versatility and flexibility you need for your application.

The EOSi range is available in up to 4 variant options to enable you to select the optimal choice for your application:

Standard: designed to deliver the exact performance to match your demand, at the minimum possible lifecycle cost. Intelligent control enables energy reduction of 50% or more compared with conventional solutions.

Q: designed for cycling applications, where chamber pumpdown time is important. The responsive inverter control and special configuration enables even faster chamber pumpdown with optimal energy efficiency.

W: whilst the standard EOSi pumps are able to reliably pump water vapour loads similar to equivalent rotary vane pumps, the W version is designed to pump significantly higher water vapour loads and can offer superior comparative performance where required on applications such as pipeline drying and freeze drying.

QW: combines the special design configuration of the Q version with the water vapour handling capabilities of the W version.

Request a Quote

1 6

Product Features

PUMP MODULE
Highly efficient oil-sealed rotary screw. Outstanding performance. Robust design. Element life is significantly longer than screw compressors and vane pumps
INLET CONTROL VALVE
Provides modulating vacuum control in conjunction with the VSD drive to minimize energy consumption
GUARANTEED OIL RETENTION
Longer life because of managed performance means the vacuum pump never overloads the separators. Innovative and patented design retains oil at <3 mg/m3 even when under the greatest load. In conventional fixed speed vacuum pumps overloaded oil separators lead to oil carryover

ENCLOSURE WITH HOT-COOL ZONES
It isolates all heat producing and temperature critical components (oil separator and element) from all other components. As cool running means higher reliability this feature extends the lifetime of electronic components and leads to a longer Mean Time Between Maintenance(MTBM)
EASY TO USE, SIMPLE TO MAINTAIN
The top cover of the oil separator has a unique hinge mechanism. It slips the cover to the side allowing the oil separator filter to be changed easily and quickly. A cleverly designed exhaust pipe enables the condensates to be collected in the discharge pipework at the outlet

ENERGY RECOVERY OPTIONS
Available for larger motor sizes. Helping you to fulfil your energy management and environmental commitments according to ISO 50001/14001

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
