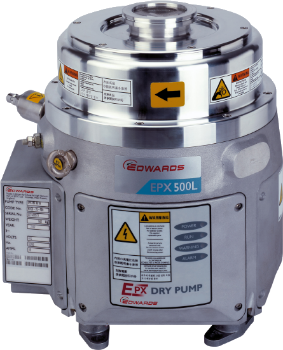

EXP High Vacuum

Name: EXP High Vacuum
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The EPX is a unique pump, patented and designed by Edwards, that is capable of pumping from Atmospheric pressure to 10⁻⁴ and 10⁻⁶, and ideal even in demanding cycling applications

Atm. to < 10⁻⁶ mbar

In a single pump, thanks to a unique and patented mechanism designed and manufactured by Edwards

Compact Footprint

EPX is smaller than the equivalent turbomolecular pump and primary pump combination

Ultra Clean Mechanism

EPX pumps have no oil or grease under vacuum and present no other source of potential contamination

Unique Patent Protected Pumping Mechanism

The EPX series uses a unique, patented, single-shaft regenerative and Holweck® stage mechanism

10 Years

Low cost of ownership with up to ten years completely maintenance free

View full details

Edwards EPX Sizes		EPX180LE	EPX180NE	EPX500LE	EPX500NE
Peak pumping speed	m³/h	175	175	500	500
Ultimate vacuum	mbar	<1x10⁻⁴	<1x10⁻⁴	<1x10⁻⁶	<1x10⁻⁶
Cooling water consumption	l/h	120	120	120	120
Power at ultimate	kW	1.4	1.6	1.4	1.6
Noise at ultimate	dBA	<56	<56	<56	<56

Documentation

EPX Brochure

The EPX series uses a unique, patented, single-shaft regenerative/Holweck® stage mechanism that makes them capable of pumping from atmosphere to ultimate pressures of <1x10⁻⁴ mbar or <1x10⁻⁶ mbar depending on model. They are ideal for applications where a better base pressure is required than can be delivered by a typical primary pump and where otherwise a turbomolecular pump and primary pump would be required and also for applications that cycle frequently from atmosphere to low pressures as they can operate continuously at all inlet pressures.

Request a Quote

1 6

Product Features

HOLWECK AND REGENERATIVE STAGES
for wide range performance with low heat and vibration.
COMPACT FOOTPRINT
EPX is smaller than the equivalent turbomolecular pump and primary pump combination.
ULTRA CLEAN MECHANISM
EPX pumps have no oil or grease under vacuum and present no other source of potential contamination.

WATER COOLED
for a low environmental head load.
NITROGEN PURGE FACILITY (N VARIANTS)
which makes them suitable for pumping vapours and low levels of corrosive vapours and particulates.
ADDITIONAL HELICAL ROTOR STAGE (EPX500 ONLY)
for increased speed and 1x10⁻⁶ mbar capability.
