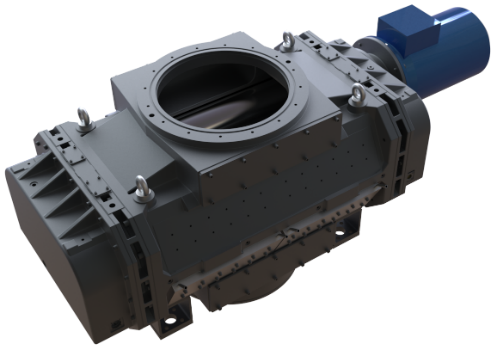

GMB40K Booster

Name: GMB40K Booster
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The new Edwards GMB40K with an innovative composite rotor design of high strength alloy-steel shafts with lightweight rotor lobes safely enable higher running speeds. This patented construction gives maximum displacement on an industry leading footprint.

31.000 m³/h

With a wide range of variants.

Robust & Safe

Designed for harsh applications, ensures mechanical integrity during process malfunctions

Increased efficiency

Lowest power consumption at vacuum

Controllable vacuum

With rotational speeds from 540 to 3960 rpm

Economic

Reduced installation costs and minimal in situ service to maximise process uptime

View full details

GMB40K Sizes		GMB40k
Displacement	m³/h	31,000
Drive type		direct
Inlet connection		DN500
Outlet connection		ISO250
Motor rating	kW	IEC - 30

Documentation

GMB40k Brochure

Edwards innovative composite rotor technology ensures high performance on the smallest footprint and weight. This ensures the highest degree of flexibility when designing large vacuum systems.

Request a Quote

1 6

Product Features

With a 6,700 m³/h backing pump system. This can be achieved by 3 Standard Edwards GXS vacuum pumps.

Scalable technology for simple design of large pumping systems or adding redundancy to valuable processes.

Dimensions

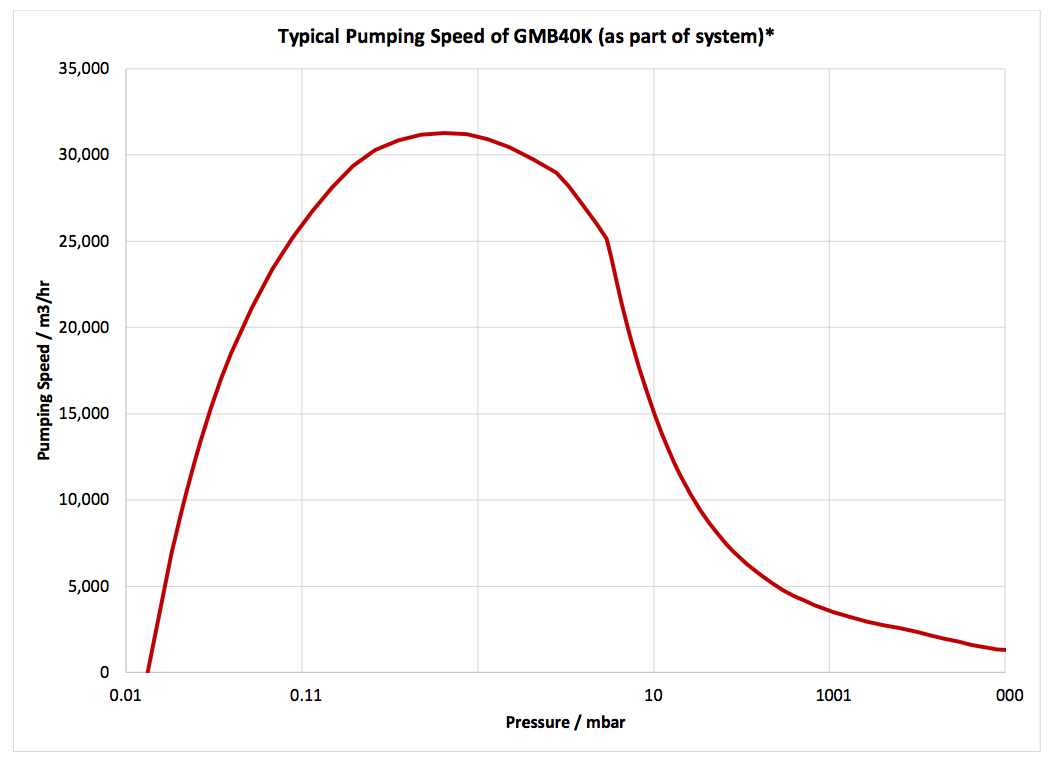

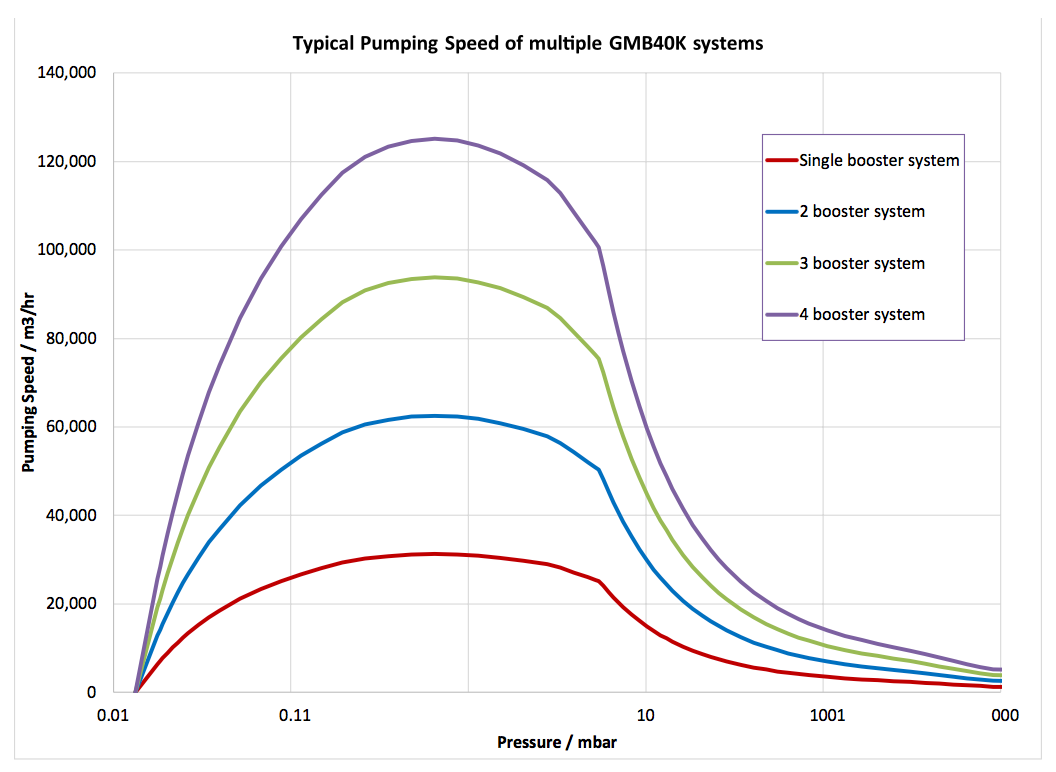

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
