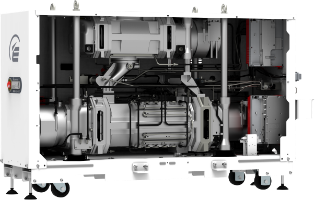

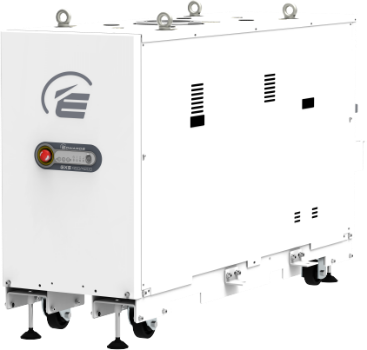

GXS Dry Screw

Name: GXS Dry Screw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

With more than 90 years of experience and more than 150.000 dry pumps installed worldwide, the GXS represents the latest Generation of industrial dry pumps

160 to 3.450 m³/h

Faster pumpdown times available in a range of sizes

Atm. to 5x10⁻⁴ mbara

Increased productivity and product quality

Robust

Reliable operation even in harsh industrial applications

< 64 dB(A)

Quiet running with low power and utilities consumption

Intelligent

On-board controller with extensive communication and automated control capabilities

View full details

Dry pumps

GXS pump sizes		GXS160	GXS250	GXS450	GXS750
Peak pumping speed	m³/h	160	250	450	740
Ultimate pressure (without purge)	mbar	0.007	0.004	0.005	0.003
Power at ultimate	mbar	3.8	4.0	7.2	10.0
Noise at ultimate	dB(A)	<64	<64	<64	<70

Combinations with Roots booster

GXS pump sizes		GXS160/1750	GXS250/2600	GXS450/2600	GXS450/4200	GXS750/2600	GXS750/4200
Peak pumping speed	m³/h	1200	1900	2200	3026	2300	3450
Ultimate pressure (without purge)	mbar	0.0007	0.0005	0.0005	0.0005	0.0005	0.0005
Power at ultimate	kW	5.1	5.3	8.8	9.4	11.1	11.5
Noise at ultimate	dB(A)	<64	<64	<64	<64	<70	<70

Documentation

GXS Brochure

Edwards is a world leader in the design, technology and manufacture of vacuum pumps with over 95 years’ history and more than 75 years’ manufacturing experience.

Our GXS dry pumps take vacuum performance to the next level. With unique screw technology and world leading high efficiency drives, enabling advanced temperature control and long service intervals, you are guaranteed best-in-class pumping speeds and low running costs for many years to come.

Request a Quote

1 6

Product Features

BEARING AND LUBRICATION
Oil lubricated gears eliminate grease and the need for periodic maintenance. Uses advanced quality bearings and special purpose oil with low vapour pressure for application compatibility and greatly improved life.

DOUBLE-ENDED SHAFT SUPPORT
Non-cantilever design provides secure rotor support for extremely low vibration and superior starting reliability, especially on harsh processes. Superior liquid and powder handling.
ADVANCED SHAFT SEAL TECHNOLOGY
Non-contacting long-life seals with integral oil blocking labyrinth seal provides for highly effective sealing. Combined with a six litre per minute seal purge the gearbox is protected from contamination and the vacuum space is kept free of oil.

MOTOR AND DRIVE TECHNOLOGY
Extremely high efficiency motors with electronic drives deliver maximum torque performance for difficult Processes. Hermetically sealed motor eliminates oil leaks and improves pump reliability. Water-cooled motors and drives provide for improved reliability and long life to reduce service costs.
ADVANCED MECHANISM DESIGN
Enhanced screw-type rotor design results in smooth, gradual compression along the length of the rotor for improved thermal control and optimised pumping at all inlet pressures. Advanced machining techniques and design features eliminate the need for rotor coatings while maintaining superb ultimate vacuum performance.
ROOTS BOOSTER MECHANISM
High efficiency vacuum booster design. Optimised for maximum performance with automatic thermal management.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
