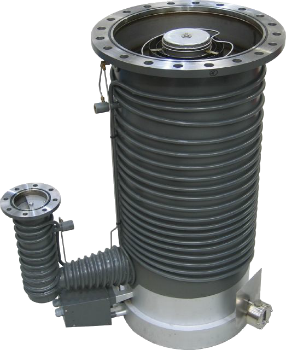

HT Diffusion

Name: HT Diffusion
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The HT high throughput series is the pinnacle of our diffusion pump knowledge with technology aimed specifically at industrial users. It is designed for all light and heavy duty industrial applications.

Earliest crossover pressure

of similar sized pumps.

Excellent maximum backing line pressure

and tolerance to gas surges

Integral cold cap

for best performance and low back streaming.

Self fractionating

for low ultimate pressures.

Minimized backstreaming

for processes with high critical backing pressure and feature baffles

View full details

HT Diffusion Sizes		HT10	HT16B	HT20B
Comparative pumping speed (N)	l/s	4650	11580	18000
ISO Pumping Speed at 10⁻³ mbar Nitrogen	l/s	2900	6700	8000
ISO Pumping Speed at 10⁻³ mbar Helium	l/s	4900	8500	16000
Maximum Throughput (N)	mbar l/s	10	18	24
Critical backing pressure (With Edwards 704)	m³/h	1.1	1.4	1.3
Recommended backing pump		GV80, E2M80	GV80, GXS250, E2M175	GXS250, E2M175

Documentation

HT Diffusion Product Information

The robust construction gives high pumping speed at high pressure. The cast and machined aluminium interior provides consistent performance, while the stainless steel body prevents corrosion and ensures process cleanliness.

These pumps are designed to give a high throughput (pressure multiplied by pumping speed) at 4x10⁻³ mbar making them ideal for industrial processes that involve large quantities of gases.
