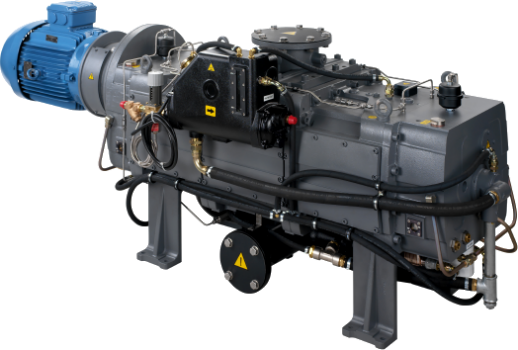

IDX Dry Screw

Name: IDX Dry Screw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The IDX1000 is the benchmark in performance for fast pump-down of large chambers and high capacity pumping for industrial processes

1.000-1.300 m³/h

Plus larger capacities if combined with Roots Boosters

Atm. to 0.05 mbar

Increased productivity and product quality

Industry proven, tried and tested

Specifically designed for chemical applications

Designed and tested for safety and reliability

Stable operation, even during process upsets

Low cost of ownership

Easy maintenance, low utilities consumption and no cooling gas injection required

View full details

IDX Pump Sizes		IDX1000	IDX1300
Pumping speed	m³/h	1000	1300
Ultimate pressure	mbar	0.05	0.05
Power Motor	kW	30	30
Noise	dB(A)	82	82

Documentation

IDX Datasheet

Based on the double-ended screw technology, the IDX Dry Vacuum Pump will give you all the reliability and performance you want for your process. The IDX outperforms all other dry pumps in robustness, performance and ease of operation, giving you faster pump-down from atmosphere and managing higher throughput at low pressures.

Dry pumping systems reduce energy costs, eliminate effluent and can give significant improvements in product quality, making them the ideal solution for many coating and metallurgy processes.

Request a Quote

1 6

Product Features

PERFORMANCE
Continuous from atmosphere to ultimate, Excellent temperature control, Large liquid slug capability.
MAINTENANCE
On-site seal and bearing change, Flushable with water, solvent or steam, Low rotational speed, Cooled and filtered oil, Integral accessory modules.

SIMPLICITY
Low parts count, Balanced rotor design, No compression plate, Industry standard motors.
ENVIRONMENT
No effluent generated, Dry running mechanism, Efficient solvent recovery, Low power.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
