Comprehensive Solutions for Pressure Control

Mechanical gauges, switches, and other specialized instruments provide versatile solutions for pressure measurement and control.

From traditional dial gauges to advanced switching mechanisms, these tools deliver reliable performance and precise readings.

Understanding the various types of mechanical gauges and switches, their operating principles, and their suitability for different conditions is essential for making the right choice.

View full details

Watch P4 and P5 portable gauges in action!

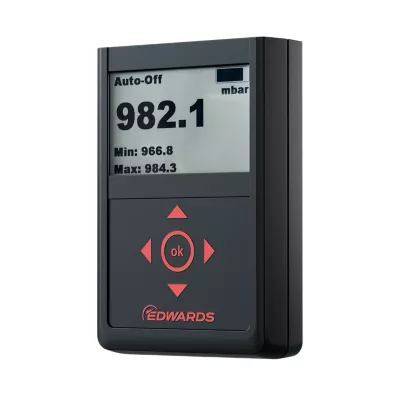

Key Features of the P4 and P5 Portable Gauges:

Compact, handheld design
Lightweight, portable, and easy to use on-site.

Battery-operated
Integrated battery power eliminates the need for an external power supply.

Precise pressure measurement
P4: 2000 to 1 mbar
P5: 1200 to 5 x 10⁻⁵ mbar

Onboard data logging
Record and review multiple measurement series directly on the device.

USB-C & Bluetooth® LE connectivity
Export data for detailed analysis and visualization.

1 5

The P4 and P5 Portable Gauges are essential tools for service personnel, offering accuracy, independence, and portability for effective vacuum system maintenance, testing, and optimization.

Discover all the details by downloading our comprehensive P4 and P5 Portable Gauges Datasheet.

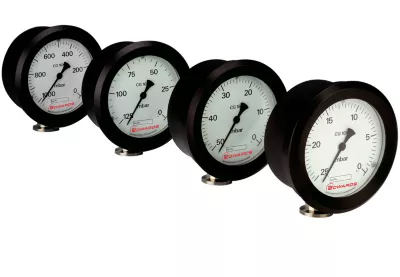

CG16K Capsule Dial Gauges

The CG16K Capsule Dial Gauges are designed for precise and reliable pressure measurement, covering a range from 0 to 1040 mbar.

These barometrically compensated gauges ensure accurate readings unaffected by atmospheric pressure changes.

The robust construction, featuring a rugged aluminum casing with a removable bezel for cleaning, makes these gauges suitable for both non-corrosive process plant and laboratory applications.

With full-scale options of 25, 50, 125, and 1040 mbar (20, 40, 100 & 760 Torr), the CG16K gauges cater to a variety of pressure measurement needs.

They provide an accuracy of ±2% of full scale, ensuring repeatable performance even at low pressures. Torr options are also available, and the gas-independent design allows for versatile use across different gases.
The clear, easy-to-read display eliminates the need for a controller, and calibrated options are available for enhanced precision.
Installation is straightforward, with the option for direct or panel mounting using the supplied kit.

These features make the CG16K an excellent choice for tasks such as backfilling, portable equipment, degassing, refrigeration, handling flammable vapors, upgrading from Bourdon gauges, and packaging processes.

With their robust design and reliable performance, the CG16K Capsule Dial Gauges are an invaluable addition to any pressure measurement toolkit, delivering consistent results across diverse environments and applications.

P4 and P5 Compact Vacuum Meters

The P4 and P5 Portable Gauges are complete, all-in-one gauge displays that operate off an integrated battery, making them the perfect solution for service personnel to check vacuum performance at specific points in a system, ensuring operational efficiency. These convenient handheld devices eliminate the need for a gauge/controller setup or an external power supply, allowing for quick and easy spot measurement checks. Their compact, portable design ensures they are always ready for on-site service calls, maintenance checks, and flexible system diagnostics.

The P4 and P5 measuring systems offer independence from mains power, enabling seamless operation in field environments. Both models are equipped with advanced sensors for precise vacuum measurement. The P4 features a piezoresistive sensor with a pressure range of 2000 to 1 mbar, making it ideal for rough and fine vacuum applications. The P5 is equipped with both a piezoresistive and Pirani sensor, providing a broader range between 1200 to 5 x 10⁻⁵ mbar.

Both gauges include onboard memory for data logging, allowing users to store multiple measurement series directly on the device. This supports effective system analysis and performance tracking. Additionally, the P4 and P5 feature USB-C and Bluetooth® LE connectivity, allowing users to export and visualize data for further analysis.

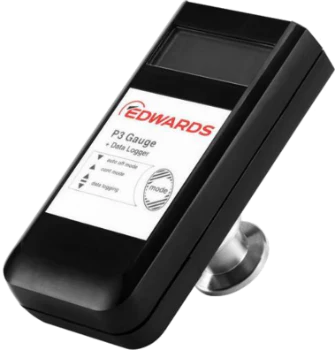

P3 Handheld Pressure Gauge

The Edwards P3 handheld measuring system is the essential device for on-site service calls and on the spot flexible checking. Thanks to the easy use and integrated measurement data memory, pressures can be directly measured at different locations for monitoring the application. Owing to the advanced measuring range of the high-precision Piezo Pirani sensor, pressure measurement in the range of 1200 to 5x10⁻⁴ mbar can be displayed.

Portable Vacuum Gauge

Piezo-resistive and thermal conductance Pirani

Integrated Pressure Display

mbar, Torr, microns, Pa

1200 to 5x10⁻⁴ mbar range

With gas type correction factors (Ar, CO2, He, CO, H2, N2, Kr)

Data storage & measurement Software

Able to store and display up to 2000 measured values

Battery powered or power supply

100 hr Li, 40 hr Alkali

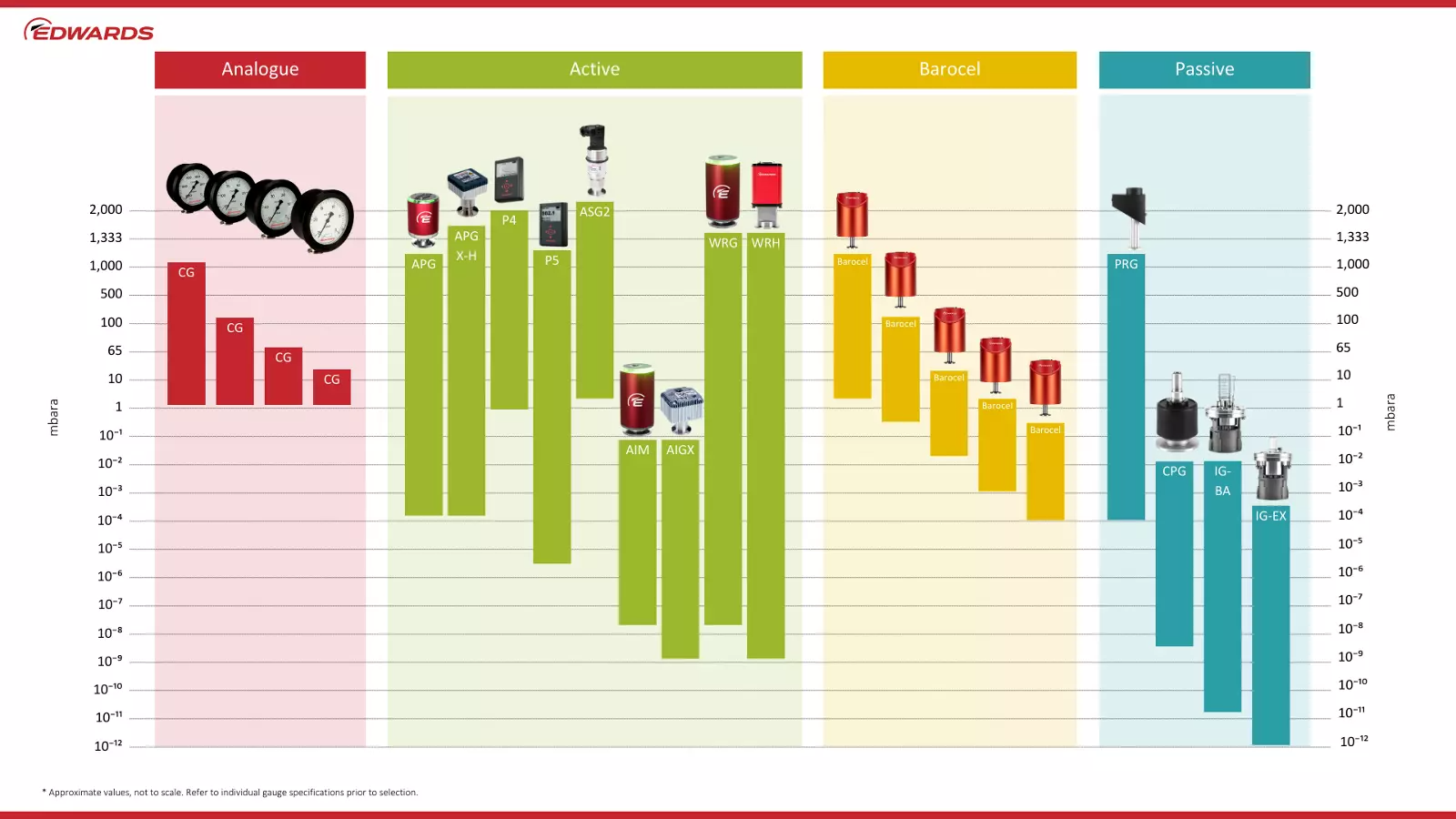

Quick overview of gauges:
