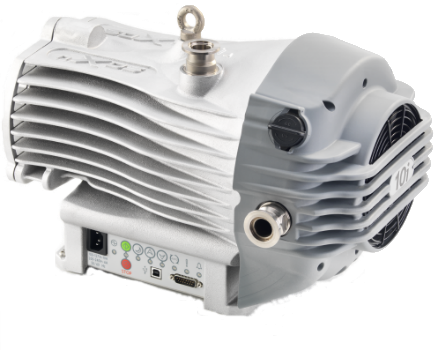

NXDS Dry Scroll

Name: NXDS Dry Scroll
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The nXDS has taken scroll vacuum technology to the next level. Improved performance, exceptional pumping capability, quiet operation and extended service intervals make nXDS the ultimate dry choice.

Totally Dry

Hermetically sealed, innovative mechanism

0.007 mbar

Superior vacuum levels achieved

Easy maintenance

User-friendly, with up to 5 years between overhauls

< 52 dB(A)

Better working environment with low noise and vibration

Special versions

With Chemical & Gas Recirculation variants

View full details

NXDS pump sizes		nXDS6i	nXDS10i	nXDS15i	nXDS20i
Peak pumping speed	m³/h	6.2	11.4	15.1	22.0
Ultimate vacuum (total pressure)	mbar	0.02	0.007	0.007	0.03
Ultimate vacuum with gas ballast	mbar	0.05	0.04	0.04	0.06
Water vapour handling capacity	g/h	110	145	145	220
Noise at ultimate	dBA	52	52	52	52

Documentation

nXDS Brochure

nXDS improves on other scroll pumps by offering increased pumping speeds, combined with lower ultimate pressures, low power consumption and reduced noise. The gas ballast allows for pumping of condensable vapours, including water, solvents, dilute acids and bases. nXDS pumps feature the very latest in tip seal technology, giving a significantly longer life between tip seal changes.

nXDS-C has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications involving corrosive substances. This chemically resistant version is fitted with Chemraz® internal valve pads and stainless steel fittings. nXDS-R has the gas ballast blanked off so it cannot be accidentally opened. This is useful for applications such as rare gas recirculation or gas recovery.

Request a Quote

1 6

Product Features

HERMETIC BELLOWS
Isolating the vacuum environment from the bearing mechanism
UNIQUE PERFORMANCE
Advanced scroll design with faster speeds and better vacuum
TIP-SEAL TECHNOLOGY
Advanced tip-seal technology for long service lifetime

SUPERIOR VAPOUR HANDLING
Gas-ballast provides up to 200g/h while maintaining performance
MANUAL AND REMOTE OPERATION
Easy-to-use manual control buttons with parallel and serial communication options
SPEED CONTROL
Integrated inverter allows user-defined speed control as well as stand-by operation

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
