Portable Vacuum Leak Detectors

Name: Portable Vacuum Leak Detectors
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

For enhanced sensitivity and reliability

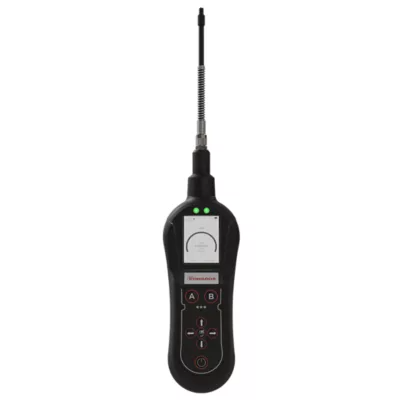

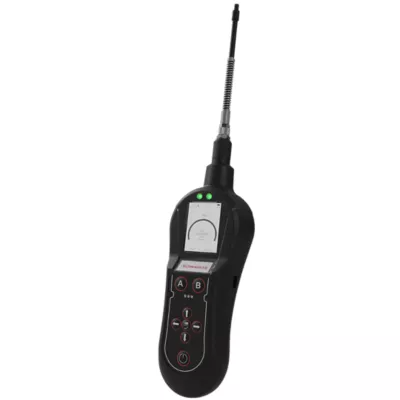

GasCheck G4 advanced gas leak detector

Successor to the popular GasCheck G3, the new model G4 features an improved Micro Thermal Conductivity sensor for enhanced sensitivity and piezo disc pump for increased reliability.

View full details

Applications

Leak detection of new installations & serviced equipment.
Leak detection of welds, joints, seams and gaskets on components that are pressurised with a traceable gas such as helium or carbon dioxide.
Leak testing refrigeration plants.
Leak check on cylinders and aerosols.
Used in mass spectrometry and gas chromatography.
Leak detection in environments with a high magnetic stray field.

Technical specifications
Detector	Micro thermal conductivity detector (MTCD)
Battery type	Rechargeable Li-ion battery
Battery life	20 hours
Audible alarm	≥90 dBa at 10 cm at 50 % relative humidity (room temperature)
Factory calibration	5000 ppm helium (±5%) Leak: 0.0005 cc/sec (±5%)
Data logging	10 days continuous
Response (T90)	1 second
Flow rate	2 cc/s
Temperature	Operating: 0°C to 50°C
Humidity	0 - 99% R.H
Weight	447g (approx.)
Dimensions	320 x 80 x 55 mm (approx.)

Features and Benefits of GasCheck G4

Detect leaks with automatic and direct display of gas leak rate.
Large LCD colour display with intuitive control and value displays.
Choice of readings in cc/sec, mg/m3h-1 or ppm, g/yr and %vol.
Rapidly detects almost any known gas – particularly sensitive to ammonia, argon, butane, helium, xenon.
Data-logging facility – 10 days of continuous logging.
Ergonomically designed for portable one-handed operation - IP44 protection, ruggedised design, rechargeable Li-ion battery (up to 20 hours) and lightweight.

1 5

At the heart of the instrument is a sensor which can detect any gas with a different thermal conductivity to that of air.

Leaks can be located, and the gas leak rate shown on the large LCD colour display in a choice of convenient units. The handheld leak detector holds an easily selected internal library of gases specific to your application.

Datalogging with the GasCheck G4 is now possible over a long period of time (up to 10 days continuous) meaning less back and forth to download data.

As part of the GasCheck G4 kit you receive a lightweight portable carry case, which is a good source of protection when the device is in transit. The carry case holds the handheld gas leak detector, key accessories, and cables, more of which are available separately.

Gascheck G4 - Datasheet
