Stokes Booster

Name: Stokes Booster
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

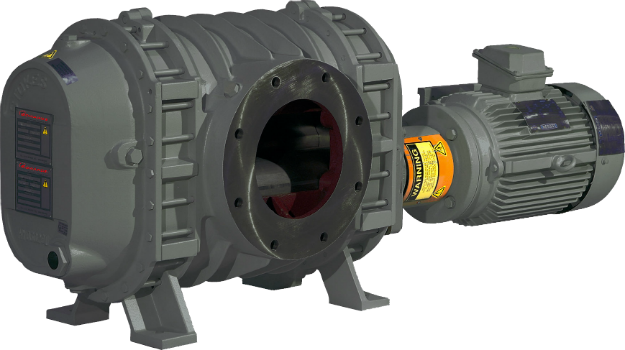

Stokes 6” series mechanical boosters are designed to be used in conjunction with rotary piston, dry vacuum, rotary vane, liquid ring or on the inlet of the backing pump to create a compact integrated package to increase pumping speed at working pressures and reduce the pump down time significantly.

1.590 - 6.630 m³/

With a wide range of variants.

Robust

Over 80 years of time tested proven performance with experienced service and technical support.

Increased lifetime

reliability and simple to use – large diameter shafts, ring feeder keyless gear locking system and dynamically balanced impellers.

Reliable

Easy to maintain - single mechanical seal. Increased productivity – 5 seal design for optimal process protection.

Versatile

Bareshaft or direct drive. Vertical or horizontal gas flow with by-pass versions available.

View full details

STOKES BOOSTER SIZES		607	615	618	622
Displacement V belt	m³/h	1589	3375	3375	5100
Direct drive 1800 rpm	m³/h	1040*	2210*	2210*	5525*
Direct drive 3000 rpm	m³/h	1733	3685	3685	5525
Direct drive 3600 rpm	m³/h	2080	4420	4420	6630
Max. pressure differential	mbar	506	506	-	333
Motor power	kW	7.5	11	8.5	18.5
Inlet/outlet flanges	ASA/ANSI	6"	8"	8"	8"

*Not available as PIB option

Documentation

Stokes Boosters Product Information

The 6” Series are available in bare-shaft or direct drive motor variants, horizontal or vertical gas flow and with a single mechanical seal or a Process Isolation variant with 5 mechanical seals for optimum protection from dust and particulate contamination in arduous applications. Also By-pass variants are available which eliminate the need for pressure switches making the 6” Series one of the most versatile and flexible boosters.
