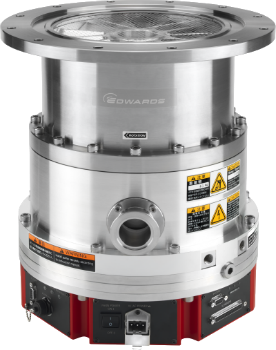

STP maglev pumps

Name: STP maglev pumps
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The STP has a market leading reputation for quality and reliability. Available in four different ranges - Ultra High Vacuum; High Throughput; Ultra Low Vibration and Integrated Controller - it is considered by many as the Rolls Royce of turbomolecular pumps.

300 - 4.300 l/s

Wide range of sizes, inlet flanges and special versions

Extremely Reliable

The STP is trusted and relied upon by industrial and labotary customers worldwide

5-Axis Full Maglev

Exceptional 5-axis full maglev pump performance, with zero hydrocarbon lubrication

Extremely Robust

Automatic balancing systems, corrosion resistance versions, power failure protection

10 Years

between services can be achieved with these pumps. No routine or preventive maintenance is required

View full details

Edwards STP Sizes

Integrated Controller

The integrated controller series can be fully interfaced with advanced controllers to operate on a wide range of applications and processes. It eliminates the need for a conventional, rack-mounted controller and interconnecting cables. The fully integrated product offers easy installation and small footprint as an all-in-one solution for all application tools.

Edwards STP Sizes		iX455	iXR1606	iXR1606	iXR2206	iXR2206	iXA2206A	iXA3306C	iXA3306C	iXA4506C
Inlet flange	ISO	100K/160K	160F	200F/250F	200F	250F	250F	250F	320F	320F
Inlet flange	ICF	-	203	253/305	253	305	305	305	356	-
Pumping speed N₂	l/s	300/450	1000	1600	1850	2200	2200	2650	3200	4000
Pumping speed H₂	l/s	300/460	800	1200	1250	1350	1700	2050	2300	2700
Pumping speed Ar	l/s	-	-	-	1650	2000	1900	2300	2800	3400
Compression ratio	N₂	>10⁸	>10⁸	>10⁸	>10⁸	>10⁸	>10⁸	>10⁸	>10⁸	>10⁸
Compression ratio	H₂	>1x10⁴	>1x10⁴	>1x10³	>1x10³	>1x10³	1.0x10⁴	2x10³	2x10³	1x10³
Ultimate pressure	Pa	6.5x10⁻⁶	6.5x10⁻⁶	10⁻⁷	10⁻⁷	10⁻⁷	10⁻⁷	10⁻⁷	10⁻⁷	10⁻⁷
VG flanges also available. * extreme low vibration available

Ultra High Vacuum

The multistage pure bladed rotors in the UHV pumps provide the high vacuums required for clear beamlines on CD SEM machines, mass spectrometers and ion implanters. They provide optimum pumping performance with excellent light gas compression ratios.

Edwards STP Sizes		STP301	STP451	STP603	STP1003
Inlet flange		ISO100 / ICF152	ISO160 / ICF203	ISO160	ISO200
Pumping speed N₂	l/s	300	480	650	1000
Pumping speed H₂	l/s	300	460	550	800
Compression ratio N₂ / He / H₂		>10⁸ / 5x10⁵ / 2x10⁴	>10⁸ / 5x10⁵ / 2x10⁴	>10⁸ / - / >10⁵	>10⁸ / - / >10⁵
Ultimate pressure with bake out heating ISO flange ICF flange	Pa	6.5x10⁻⁶ / -	6.5x10⁻⁶ / 10⁻⁸	6.5x10⁻⁶ / -	10⁻⁶ / -

Documentation

The multi-axis magnetic bearing system is used to suspend the rotor during operation, ensuring there is no risk of contamination while minimising vibration, noise and maintenance requirements.

The STP pumps can be fully interfaced with advanced controllers to operate on a wide range of applications and processes. They offer class leading pumping performance demonstrating exceptional levels of reliability, and are widely accepted in the market with the installed base of over 140,000 units worldwide.They are the preferred choice for many of the most challenging semiconductor applications. For laboratory applications this makes STP maglev turbomolecular pumps extremely reliable.

Request a Quote

1 6

Product Features

OIL FREE
ensures clean vacuum, low power and low vibration. the use of magnetic bearings eliminates all hydrocarbon lubricants.
CORROSION RESISTANCE
most models of Edwards STP maglev turbomolecular pumps are also available in a special corrosion resistant version with nickel coated rotors and a nitrogen purge facility, making them ideal for chemical laboratory applications.
VIBRATION FREE
magnetic levitation means no friction and thus extremely low vibration, in addition this remains constant and does not change as parts wear.

AUTOMATIC BALANCING SYSTEM
Edwards 5-axis pumps are able adjust the magnetic field dynamically to take out rotor imbalances.
MAINTENANCE FREE
zero friction means no wear and thus no routine maintenance is required in normal operation.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
