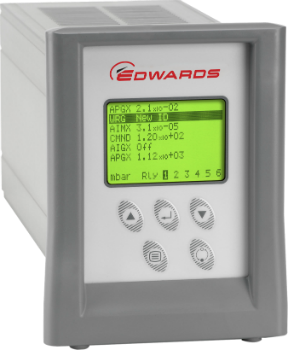

TIC Instrument Controller

Name: TIC Instrument Controller
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Two TIC Instrument Controllers are available; the three head and six head versions can accommodate 3 or 6 active gauges.

Automatically recognises and controls most active gauges

To enable complete integration into PC and PLC controlled processes, all TIC variants include RS232 and RS485 interface.

Simple and quickly configured

using the range of standard cables on offer

Lookup tables for a range of commonly encountered process gases

Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.

Attractive bench-top instrument

packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured

View full details

TECHNICAL DATA	TIC Controller (3 head)	TIC Controller (6 head)
Electrical supply	90 to 264 V a.c.	90 to 264 V a.c.
Power consumption	55 VA	160 VA
Ambient operating temperature range (measured underneath TIC)	0 °C to 40 °C	0 °C to 40 °C
Maximum operating altitude	3000 m max	3000 m max

1 6
