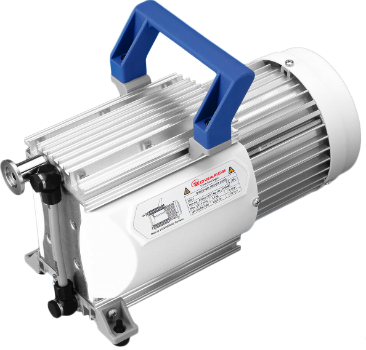

XDD1 Diaphragm

Name: XDD1 Diaphragm
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

XDD1 diaphragm pumps are used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units.

Dry Pumping

Lubricant-free technology

< 2 mbar

Ideal backing pump for small turbos

Lightweight and compact

Small footpring allowing flexibility of use

> 10,000 hours

Typical lifetime of diaphragms and valves

AC or DC operation

For a range of systemisation options

View full details

XDD1 Sizes		XDD1	XDD1	XDD1	XDD1
Voltage	a.c. / d.c.	a.c.	d.c.	d.c.	d.c.
Peak pumping speed	m³/h	1.2	0.6	1.4	1.7
Ultimate vacuum	mbar	<2	<2	<2	<2
Motor power	W	80	64	64	64
Weight	Kg	6.5	4.1	4.1	4.1

Documentation

XDD1 Product Catalogue Information

A typical ultimate pressure of better than 5 x 10⁻⁸ mbar can be achieved when using an XDD1 to back a 70l/s turbomolecular pump.

The 24 V version is designed to provide a complete pumping package using the Edwards Turbo and Instrument Controller (TIC). The d.c. voltage motor runs on 24 V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed. This version is suited to the customer who is building their own a system. The pump is a compact and efficient. Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically >10,000 operating hours, depending on the application.

Request a Quote

1 6

Product Features

Dimensions

Performance Curve
