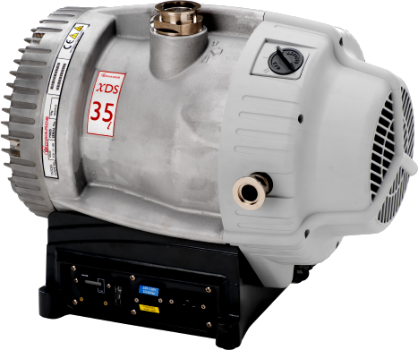

XDSI Scroll Pump

Name: XDSI Scroll Pump
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

XDSi scroll pump have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes. The XDS35i pump has an innovative bearing shield that isolates the vacuum environment, making it not only lubricant-free but hermetically sealed.

Completely Dry

Lubricant free with patented bearing shield

0.01 mbar

Excellent vacuum level

User-serviceable

Typically in under 20 minutes, without special tools

240 g/h

Excellent vapour handling capabilities

Special versions

With Chemical & Gas Recirculation variants

View full details

XDSi Technical Data		XDS35i	XDS35i	XDS46i
Peak pumping speed	m³/h	35	35	40
Pumping speed @ atmosphere	m³/h	17	22	16
Ultimate vacuum (total pressure)	mbar	0.01	0.03	0.05
Ultimate vacuum with gas ballast	mbar	0.02	0.02	0.08
Peak Power	W	1900	1500	2200
Water vapour handling capacity	g/h	240	240	240

Documentation

XDS35i E No Gas Ballast variant has had the gas ballast feature removed for applications such as rare gas recirculation and gas recovery.

The XDS46i shares many of the same features of the XDS35i but with a peak speed of 40 m³/h. The pump has been optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, making it well suited for backing turbomolecular pumps.

For more aggressive applications, ‘C’ variants are available which features Chemraz® internal valves and stainless steel fittings for extra protection from the pumped media.

Request a Quote

1 6

Product Features

BEARING SHIELD
ensures separation between process gases and bearings
INVERTER DRIVE
means consistent performance globally, pump overload protection and remote start/stop capability.
HIGH FLOW GAS BALLAST FEATURE
allows pumping of vapours including water vapour at up to 240 g/h.

EASY MAINTENANCE
allows maintenance to be done in minutes for low cost of ownership and maximum up-time.
AXIAL AIR GAP MOTOR
reduces overall pump size and gives low power and noise

Dimensions

Performance Curve

Sustainability
